妙用与详细资料/Brief Introduction：

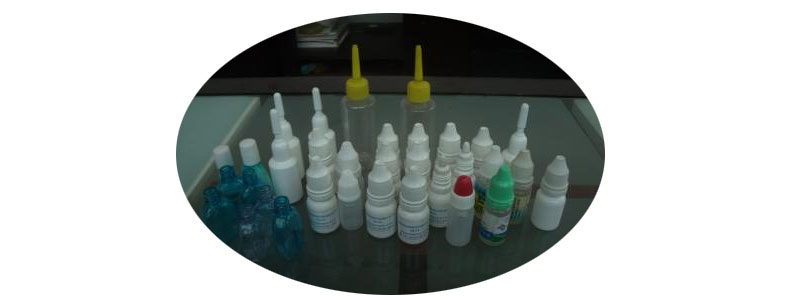

该机符合于2-30ML一些材料做的一个圆形扁形塑胶板材或有机玻璃制瓶的眼药液装灌、智能电子烟油等小标准容量装灌.该机由高的精密度气缸度数部门提供数据了度数等分盘位置定位系统上塞上盖;降时速气缸链传动齿轮提供数据了旋盖头的起降;恒扭距旋盖;消化吸收泵计算检测装灌;触模屏进行.无瓶不装灌,没有加内塞,外盖.具位置定位系统准确,链传动齿轮趋于稳定,庇护塑料瓶盖,计算检测准.进行简短等益处。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

基本特征/Characteristic：

◆微网上控制在、装量明确、工作不方便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆设备主机转数可开展无极变速变頻变速。the mainframe running speed is stepless frequency conversion.◆生产制造量自然酶联免疫法控住。the product quantity can be controlled. ◆三种机械故障提示信息能力(如低压力表。无分装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自然停止时的功能，对同一个轨道组件造成不断无装罐、无内塞症状可自然停止时。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

方法性能参数/Main Technical Parameters：

选用标准Filling Volume	2-30ml
生产销售程度Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
罐装高精准度Filling Precision	≤±1%
电源适配器 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
会自动上塞率Stoppering rate	≥99%
气动阀门Air Supply	1.3 m3/h    0.4-0.8Mpa
额定功率 Power	2.0 kw
广州POS机重量Weight	550 kg
形状长宽比Dimension	1800*1000*1500mm
