贷款用途与简价/Brief Introduction：

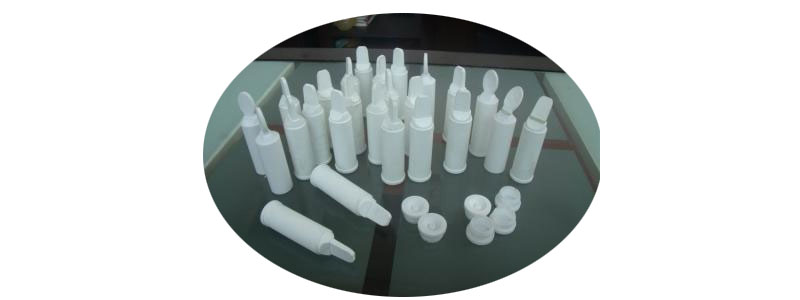

远程服务器是成为服用药液安全瓶子的新食品，彻底删除文件解决处理了往往服用药液安全瓶子的不好使用效果。四种灌封机使用的PVC瓶，不光不需洗瓶机、真空干燥机，更不需酒精消毒，行一直灌封。这手机全自行理瓶、进瓶、装灌，装灌量动态平衡，无漏滴，无瓶不装灌。上盖、封膜率高达100%。此机技艺最新，表面积小、程序运行动态平衡、噪声源低，作业维护保养、拆洗便宜等特别，可以符合规范标准GMP规范标准。This machine is a new product instead of oral liquid bottles, thoroughly solved before the adverse effect of oral liquid glass bottle. The used plastic bottles, filling and sealing machine not only don't need to bottle washer, dryer, more don't need disinfection, can be directly potting. The machine is fully automatic unscramble bottle, bottle feeding, filling, filling volume stability, no LouDi, no bottle no filling. Cover and sealing rate can reach 100%. This machine technology is advanced, small volume, stable running, low noise, convenient operation and maintenance, cleaning, etc, in full compliance with GMP standard.注：本款型有低速行驶和快速两类总产值供您选购。Note: this model has two kinds of low speed and high-speed production for your choice.

特质 Characteristic

◆机器适用性于种种易折瓶服食液的计量灌装生产线和封口处。The machine is suitable for all kinds of folding bottles of oral liquid filling and sealing of measurement.◆任何电热器电气元件均通过老牌企业品牌。All electrical components adopt famous brand◆该机基本操作抽象思维便宜，无瓶不装罐，测量*。It has intuitive and convenient operation, no bottle no filling, measuring precision.◆易折氟可乐瓶灌封机的最主要的结构与机制Easy to fold the main structure and principle of plastic bottle filling and sealing machine◆NFGFY型补血口服液液易折可塑料饮料瓶灌封机主要的理瓶器、理盖器、主齿轮变速箱整体、导入带宽度送罐部件、玻璃瓶子检漏部件、分装构造、排除部件、热溶封构造、气动式机制手腕夹瓶构造、伺服控制器电动机宽度上瓶构造与出瓶构造等主成。Type NFGFY oral liquid is easy to fold the plastic bottle filling and sealing machine main GaiQi bottle opener, and the main transmission system, the synchronous belt clearance to send bottle device, empty bottle leak detection device, filling body, eliminating device, hot melt sealing mechanism, pneumatic mechanical fingers bottle gap on the bottle structure, servo motor and a bottle of institutions, etc.◆机械设备采用的口服药液易折pp塑胶瓶、盖不是定干净区分娩的，应该由药粉材经营许可证办理证，但是瓶身与底盖经传导和"去委外"后可可以直接开启灌封间。凭借理盖器、理瓶器的自动化定位整体，除去选择性底盖及瓶身底口朝下的瓶，使定位后的包材喂料有制度地开启输料组件中。Machine using oral liquid is easy to fold the plastic bottles, cover a certain production of clean area, should have the medicine packaging material license, so the bottle and the bottom cover after transfer and "outsourcing" can go directly into the potting. By Richard GaiQi, automatic directional arrangement of bottle opener, eliminate reverse bottom cover and the bottom of the bottle mouth bottle at the bottom, after making the orientation of packaging material feeding regularly into orbit. ◆定向委培后口服方式液易折塑料件瓶在输料 轨道组件后排Directional oral liquid after folding plastic bottles in conveying rail out easily

技术工艺参数technical parameters：

型号model	NLGFY-40	NLGFY-80
装量范畴The load range	5-100ML
生产能力production capacity	20-40瓶/分	50-80瓶/分
封好率Hot sealing intensity	》99%
装量误差率The load error	《1.5%
耐磨损率damage rate	《1.0%
输出power	2KW	3KW
电源线Power Supply	380V 50Hz/220V 50Hz
外形尺寸boundary dimension	2700*1100*1900mm	3000*1480*1900mm
重量体积 Weight	700Kg	800Kg
